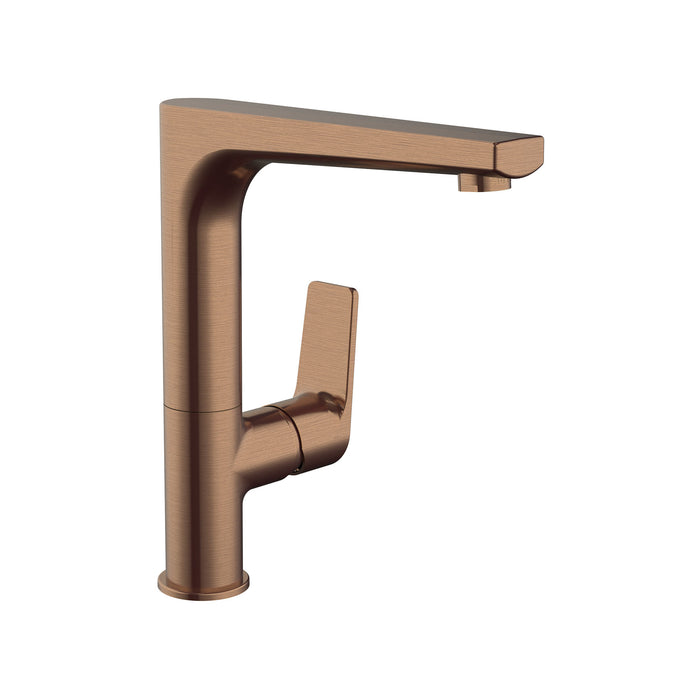

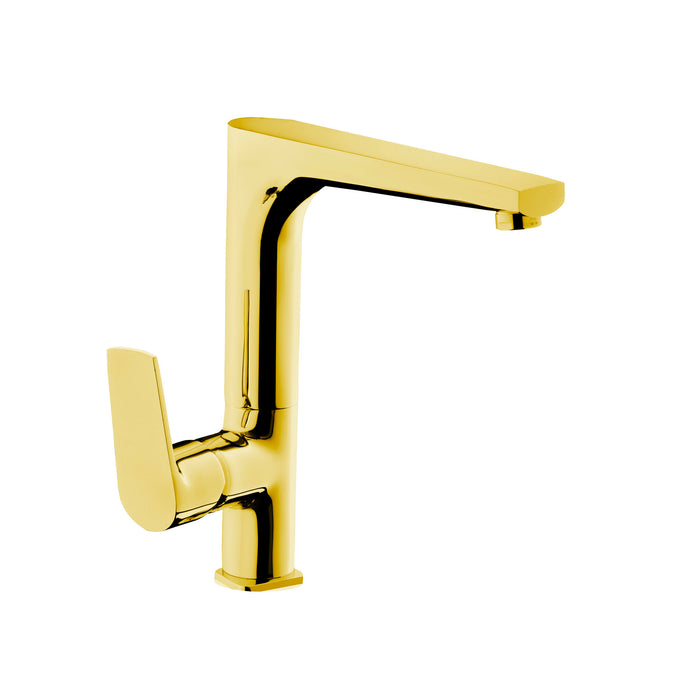

Смеситель Кухонный с Поворотным Изливом Azure

0.00
SKU 15682331
Color

Technical Information

Product Standard TS EN 817 (Single Control)
Manufacturer Warranty 6 Years (Painted And Coated Products For 2 Years)
Color / Finish Chrome
Aearator Type M24X1 Male Threaded
Flow Rate 7.5 - 9 Lt / Min (3 Bar)
Operation Type Ceramic Disc Cartridge Ø35 mm Without Leg
Control Type Single Control
Installation Connection Type Countertop
Body Raw Material Brass
Spout Length 190 mm
Spout Height 240 mm
Water Connection Flex Dimension 3/8"
Water Connection Flex Length 42.5 cm
Number Of Control Handle Single
Material Of Control Handle Metal
Dimension Of Base Rosette 50 mm x 50 mm
Number Of Loom Holes For Assembly 1
Loom Hole Diameter Ø33±1 mm
Max. Loom Thickness 40 mm
Max. Performance Temperature 80°C
Suggested Performance Temperature 60°C
Max. Performance Pressure 10 Bar
Suggested Performance Pressure 3 Bar
Min. Performance Pressure 0.5 Bar
Suggested Min. Pressure 1 Bar
Spout / Pipe Type Swivel Spout (Above)
Pipe Height 155 mm
Pipe Length 190 mm
Product Total Height 260 mm

Resources

TS EN 817 Certificate
